Epiroc

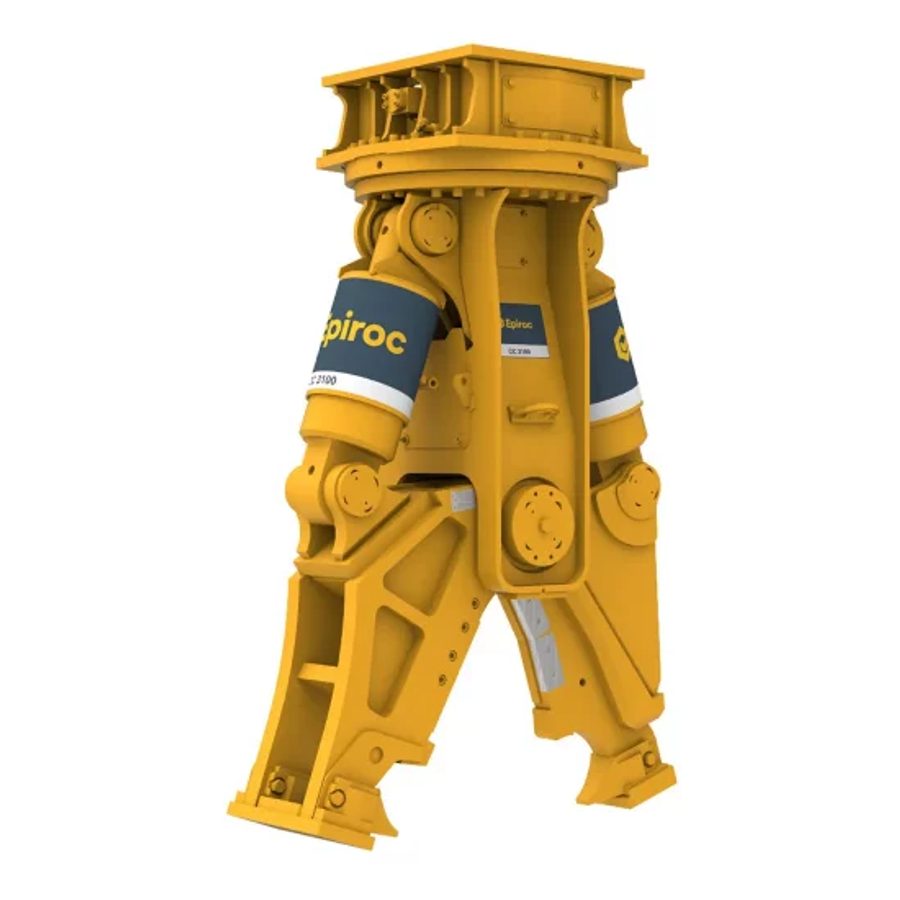

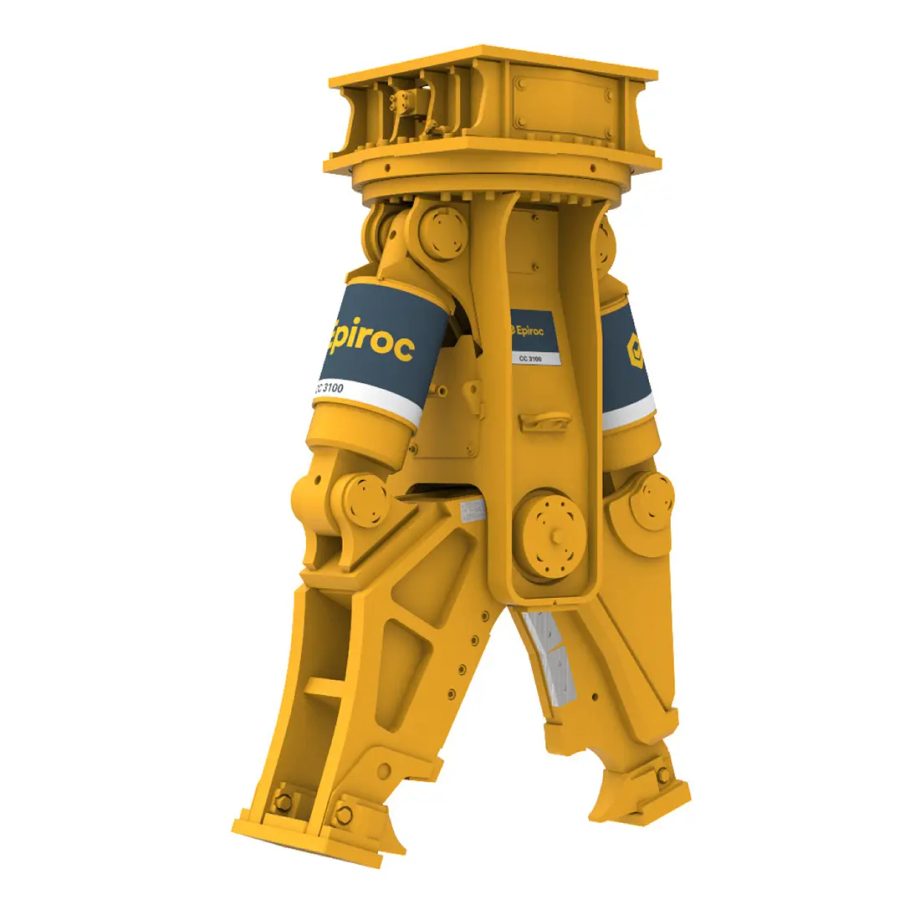

Epiroc CC3100 U/S
The Epiroc CC3100 U/S combination shear is designed for carriers weighing 25 to 40 tons, with an operating weight of 3100 kg. It features a 700 mm jaw depth, 104-ton refractive power, and cycle times of approximately 3 seconds for opening and closing.
Specifications
- Carrier Device Range 25.0 – 40.0 tons
- Operating Weight 3100 kg
- Oil Flow (Main) 150.0 – 250.0 l/min
- Operating Pressure 350 bar
- Jaw Depth 700 mm
- Refractive Power, Cheek Tip 104 tons
- Closing Cycle 2.9 sec.
- Opening Cycle 3.1 sec.
- Max Jaw Opening 870 mm
- Blade Length 350 mm
- Rotation Oil Flow 35.0 – 50.0 l/min
- Max. Operating Pressure, Rotation 170 bar
Features & Benefits
- Extreme Crushing Force: Unmatched 104-ton refractive power for cutting through the toughest reinforced materials.
- High-Capacity Jaw Design: Deep and wide jaw opening handles large, bulky debris with superior efficiency.
- Robust Hydraulic Performance: Engineered for reliable operation under continuous high-pressure industrial use.
- Precision Control System: Independent hydraulic rotation ensures accurate positioning and maneuverability.
- Industrial-Grade Durability: Built to withstand the most demanding environments, ensuring longevity and minimal maintenance.
Description
Master the most demanding demolition and material processing challenges with the Epiroc CC3100 U/S (Up/Side) crusher cutter, a top-tier hydraulic attachment engineered for extreme performance and durability. Designed for heavy-duty carriers in the 25 to 40-ton range, this industrial-grade tool delivers an exceptional refractive power of 104 tons at the cheek tip, providing the sheer force needed to cut through heavily reinforced concrete, structural steel, and large-scale industrial debris. With a deep 700 mm jaw and a massive 870 mm maximum opening, the CC3100 U/S efficiently processes bulky materials, while its robust hydraulic system ensures precise control and reliable operation under high-pressure conditions. Built to Epiroc’s highest standards of engineering and reliability, this attachment maximizes on-site productivity, reduces operational downtime, and offers a powerful solution for contractors tackling large-scale demolition, recycling, and industrial decommissioning projects.
