Epiroc

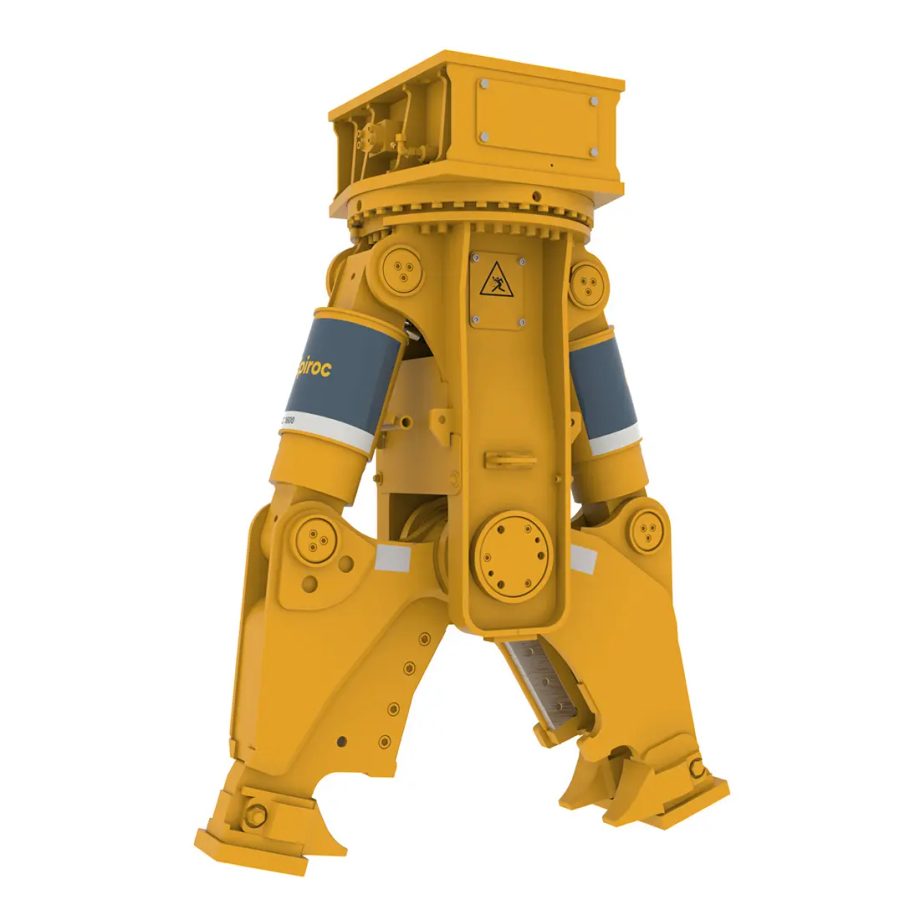

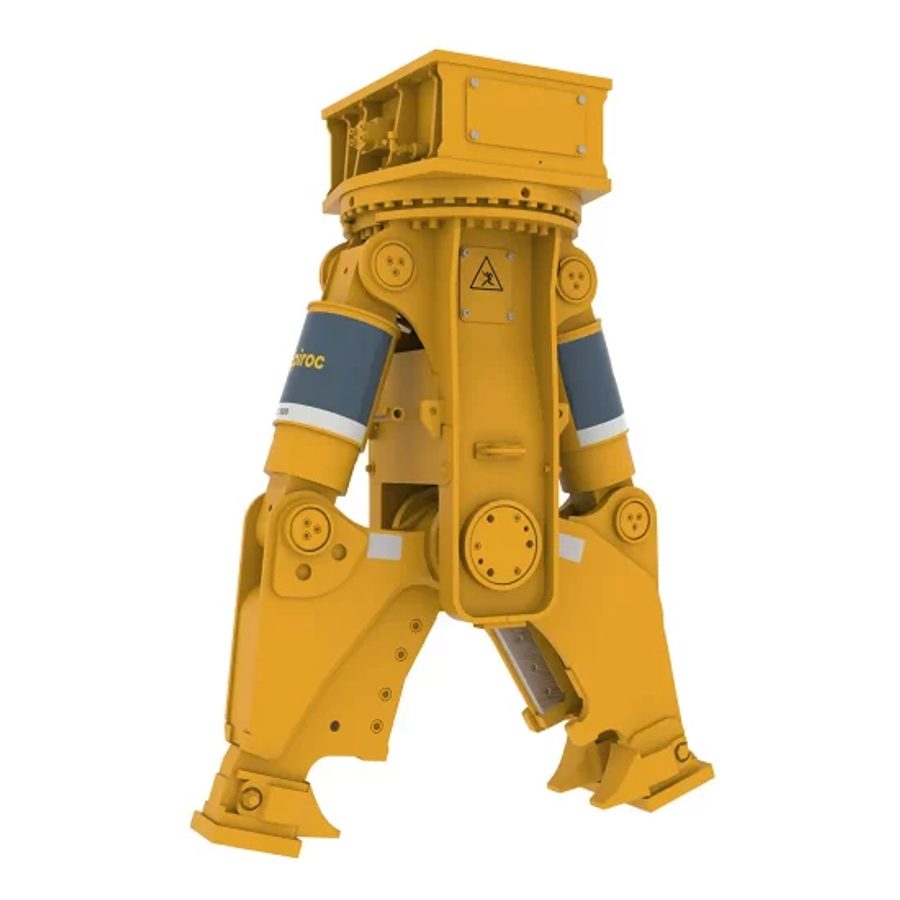

Epiroc CC1600 U/S
The Epiroc CC1600 U/S combination shear supports carriers from 13 to 23 tons, weighs 1600 kg, with a jaw depth of 490 mm and 57 tons refractive power. It features fast 1.3-second cycles and a 700 mm max jaw opening with a 350 mm blade length.
Specifications
- Carrier Device Range 13.0 – 23.0 tons
- Operating Weight 1600 kg
- Oil Flow (Main) 150.0 – 250.0 l/min
- Operating Pressure 350 bar
- Jaw Depth 490 mm
- Refractive Power, Cheek Tip 57 tons
- Closing Cycle 1.3 sec.
- Opening Cycle 1.3 sec.
- Max Jaw Opening 700 mm
- Blade Length 350 mm
- Rotation Oil Flow 35.0 – 50.0 l/min
- Max. Operating Pressure, Rotation 170 bar
Features & Benefits
- High-Speed Cutting Performance: Fast 1.3-second cycle times enable rapid material processing and increased job site productivity.
- Exceptional Cutting Force: Powerful 350 bar system and 57-ton refractive power for handling reinforced concrete and steel with ease.
- Precision Rotation Control: Independent hydraulic rotation provides superior maneuverability and accurate positioning.
- Versatile Jaw Design: Deep jaw and wide opening accommodate bulky materials, enhancing operational flexibility.
- Durable & Low-Maintenance: Robust construction ensures reliability in demanding environments, minimizing downtime.
Description
Transform your demolition and material processing operations with the Epiroc CC1600 U/S (Up/Side) crusher cutter, a premium hydraulic attachment engineered for precision, power, and unmatched versatility. Designed for carriers from 13 to 23 tons, this robust attachment excels in cutting and crushing reinforced concrete, structural steel, and industrial debris with exceptional efficiency. Featuring a powerful 350 bar operating pressure and a substantial refractive force of 57 tons at the cheek tip, the CC1600 U/S ensures maximum cutting performance with rapid 1.3-second cycle times, boosting on-site productivity and reducing project timelines. Its advanced hydraulic rotation system offers precise maneuverability, while the deep 490 mm jaw and 700 mm maximum opening allow for handling bulky materials effortlessly. Built to Epiroc’s rigorous durability standards, this attachment is engineered for reliability and longevity, making it the ideal choice for contractors seeking high-capacity, high-performance cutting solutions.
