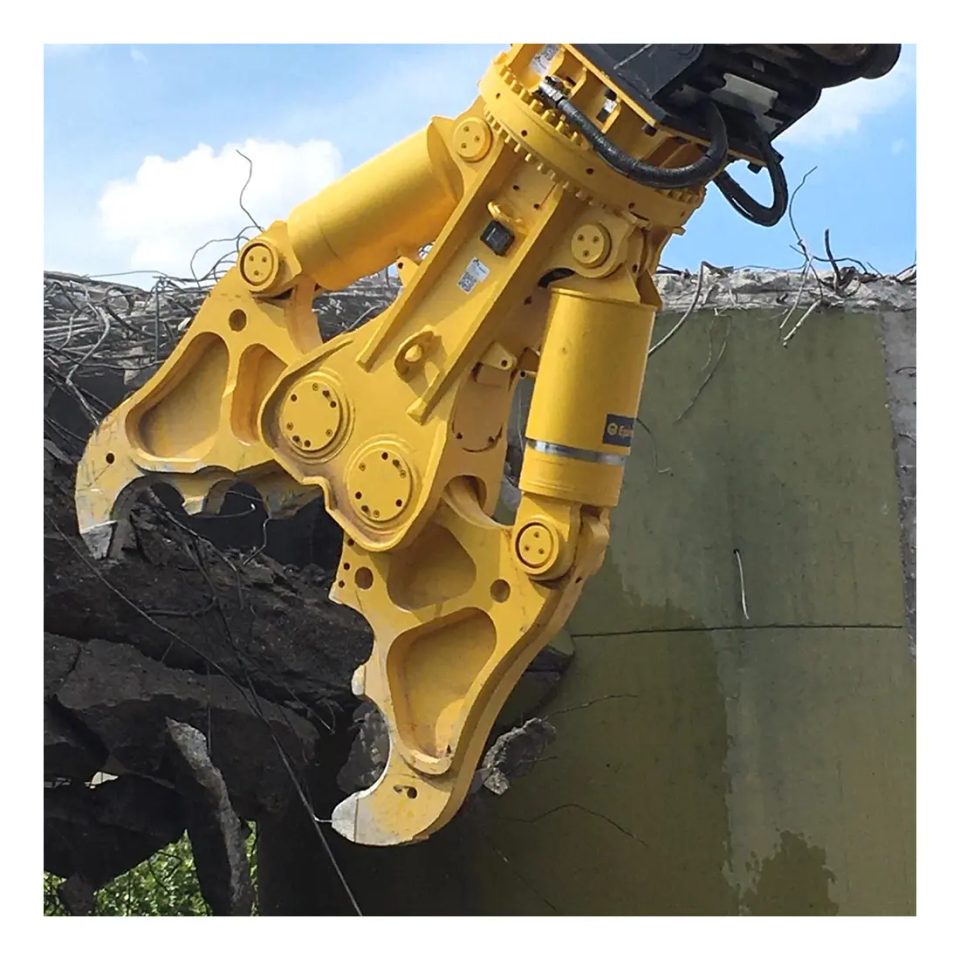

Epiroc CB7500

Epiroc CB7500 concrete shear supports carriers between 70.0 and 85.0 tons with a 7400 kg operating weight. It offers a jaw depth of 1120 mm and 190-ton refractive power, designed for maximum crushing force and high-volume handling of reinforced materials and rock.

Price on Request

Request now

Specifications

Carrier Device Range: 70.0 – 85.0 tons
Operating Weight: 7400 kg
Oil Flow (Main): 500 l/min
Operating Pressure: 350 bar
Jaw Depth: 1120 mm
Refractive Power, Cheek Tip: 190 tons
Max Jaw Opening: 1800 mm
Blade Length: 350 mm
Rotation Oil Flow: 50 l/min
Max. Operating Pressure, Rotation: 115 bar

Features & Benefits

Maximum Crushing Force: Unrivaled 190-ton refractive power for processing the toughest reinforced materials and rock.
High-Volume Material Handling: Extra-deep jaw and wide opening enable efficient intake of large, bulky debris.
Powerful Hydraulic System: High-flow hydraulic design ensures fast, powerful crushing cycles for maximum throughput.
Robust & Durable Construction: Engineered with premium materials for long-term reliability in extreme conditions.
Cost-Efficient Operation: Optimized design reduces fuel consumption and operational costs for large-scale projects.

Description

Command the most demanding material reduction tasks with the Epiroc CB7500, a top-tier hydraulic crusher bucket engineered for peak performance in large-scale demolition, mining, and quarrying operations. Designed for heavy-duty carriers in the 70 to 85-ton range, this formidable attachment delivers an exceptional 190-ton refractive power, providing the immense force required to process reinforced concrete, dense rock, and oversized bulk materials with unmatched efficiency. Featuring a substantial 1120 mm jaw depth and an expansive 1800 mm maximum opening, the CB7500 ensures high-volume material intake and powerful crushing cycles. Built to Epiroc’s rigorous engineering standards, this attachment combines raw power with operational reliability, delivering consistent productivity, reduced operational costs, and enhanced durability for contractors and industrial operators tackling the world’s most challenging crushing applications.
