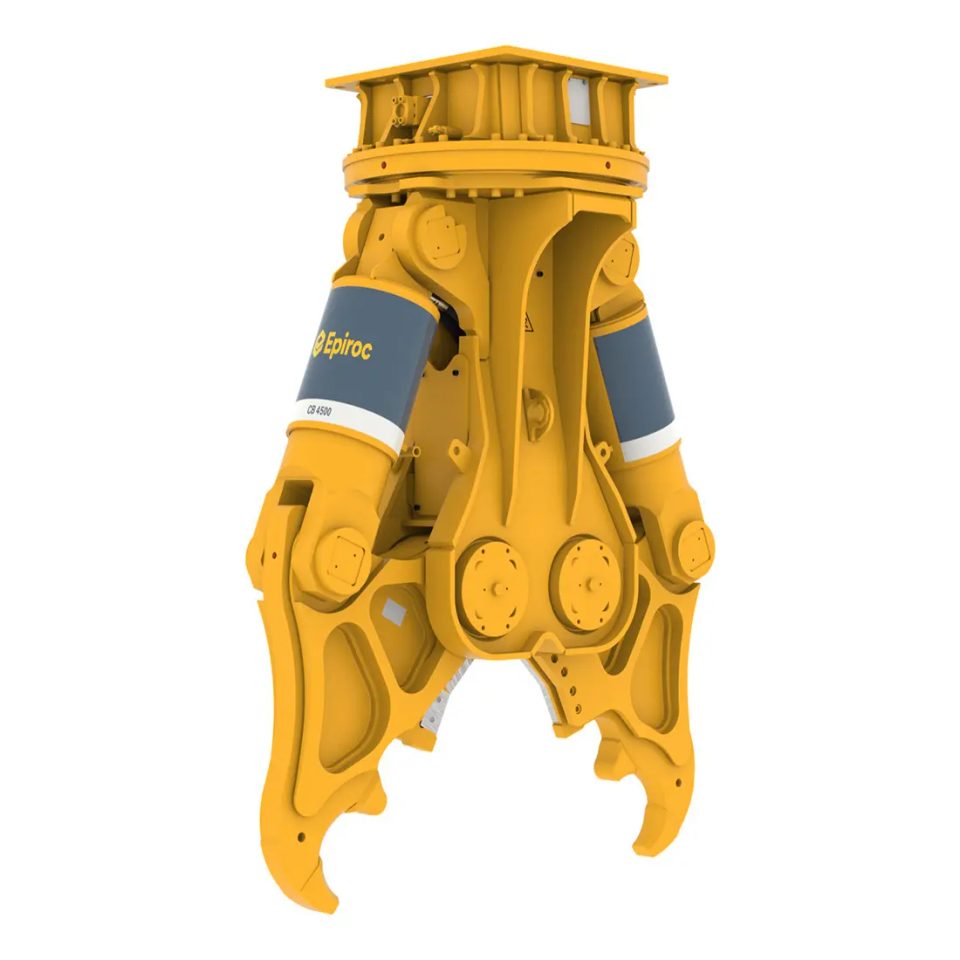

Epiroc CB4500

Epiroc CB4500 concrete shear supports carrier devices from 40.0 to 55.0 tons, weighing 4500 kg. It offers a jaw depth of 810 mm and 130-ton refractive power, operating at 350 bar pressure for high-volume crushing and on-site recycling of bulky materials.

Price on Request

Request now

Specifications

Carrier Device Range: 40.0 – 55.0 tons
Operating Weight: 4500 kg
Oil Flow (Main): 300.0 – 400.0 l/min
Operating Pressure: 350 bar
Jaw Depth: 810 mm
Refractive Power, Cheek Tip: 130 tons
Closing Cycle: 2.6 sec.
Opening Cycle: 3.6 sec.
Max Jaw Opening: 1400 mm
Rotation Oil Flow: 50 l/min
Max. Operating Pressure, Rotation: 115 bar
Device Type: New device

Features & Benefits

High-Volume Crushing: Large jaw opening and powerful refractive force for efficient processing of bulky materials.
On-Site Material Recycling: Reduces transport and disposal costs by creating reusable aggregate directly at the source.
New Device Reliability: Latest engineering ensures optimal performance, durability, and minimal downtime.
Optimized for Heavy Carriers: Perfectly matched for 40-55 ton excavators, providing stability and efficient power transfer.
Cost-Effective Operation: Advanced hydraulic design promotes fuel efficiency and lowers the total cost of ownership.

Description

Transform large-scale demolition and quarry operations with the Epiroc CB4500, a high-capacity hydraulic crusher bucket engineered for extreme productivity and power. Designed for heavy-duty carriers in the 40 to 55-ton range, this new device delivers a formidable 130 tons of refractive force, efficiently crushing reinforced concrete, natural rock, and demolition debris into reusable aggregate directly on-site. Its robust design and large 1400 mm jaw opening maximize material intake for high-volume processing.
