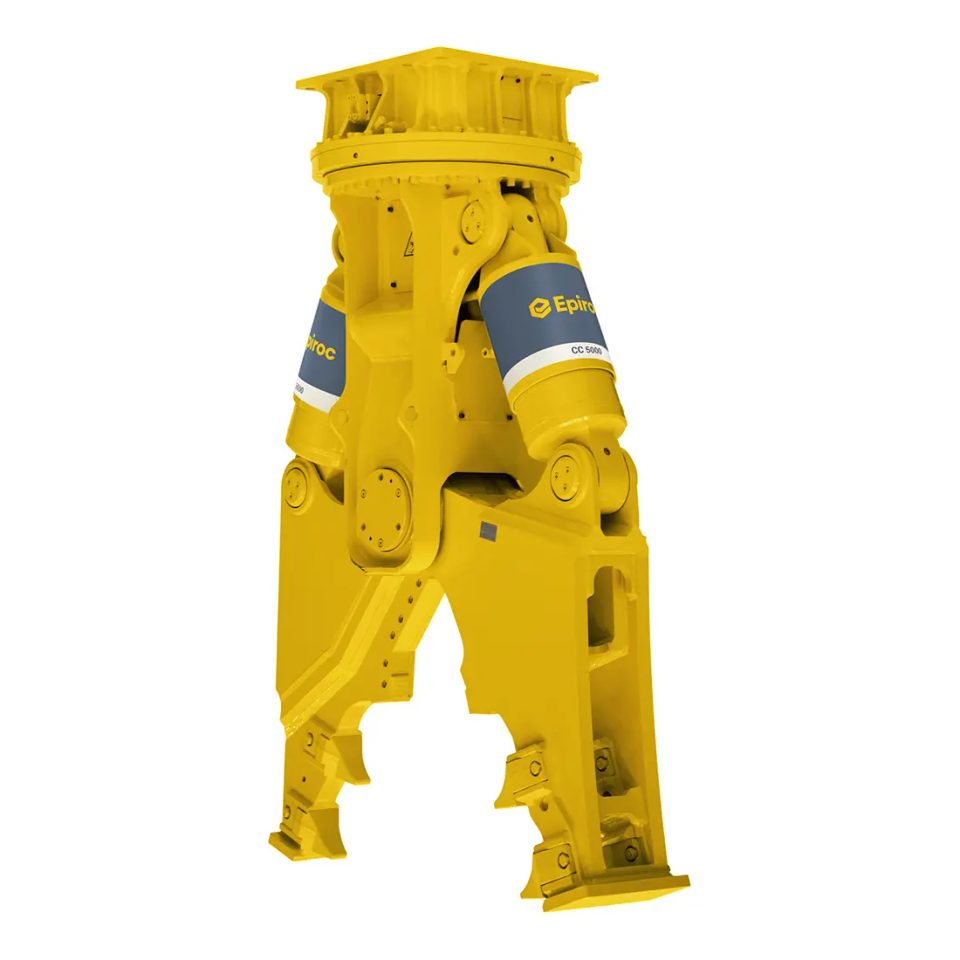

Epiroc CC5000 U

Epiroc CC5000 U combination shear fits carriers weighing 45 to 65 tons, with an operating weight of 5050 kg. It features a 1090 mm jaw depth, 155-ton refractive power, and a maximum jaw opening of 1300 mm, with cycle times near 3 to 4 seconds.

Price on Request

Request now

Specifications

Carrier Device Range: 45.0 – 65.0 tons
Operating Weight: 5050 kg
Oil Flow (Main): 350.0 – 450.0 l/min
Operating Pressure: 350 bar
Jaw Depth: 1090 mm
Refractive Power, Cheek Tip: 155 tons
Closing Cycle: 3.2 sec.
Opening Cycle: 3.7 sec.
Max Jaw Opening: 1300 mm
Rotation Oil Flow: 45.0 – 50.0 l/min
Max. Operating Pressure, Rotation: 170 bar
Device Type: Used equipment

Features & Benefits

Maximum Jaw Capacity: Deepest jaw and widest opening in its class for handling the largest structural components.
Powerful Crushing Force: High refractive power for efficient processing of heavily reinforced materials.
Cost-Effective Performance: Premium used equipment offering top-tier capability at a reduced investment.
High-Volume Processing: Engineered for continuous operation in shipbreaking, bridge demolition, and large-scale recycling.
Proven Durability: Built to withstand extreme conditions, ensuring reliable performance and longevity.

Description

Tackle mega-scale demolition and industrial processing with the Epiroc CC5000 U (Up), a colossal hydraulic crusher cutter engineered for maximum capacity and brute force. Designed for carriers in the 45 to 65-ton range, this used equipment features a massive 1090 mm jaw depth and a 1300 mm opening, delivering 155 tons of refractive power to process heavily reinforced concrete, structural steel, and oversized debris with exceptional efficiency. This high-value attachment is built for the most demanding large-scale projects.
