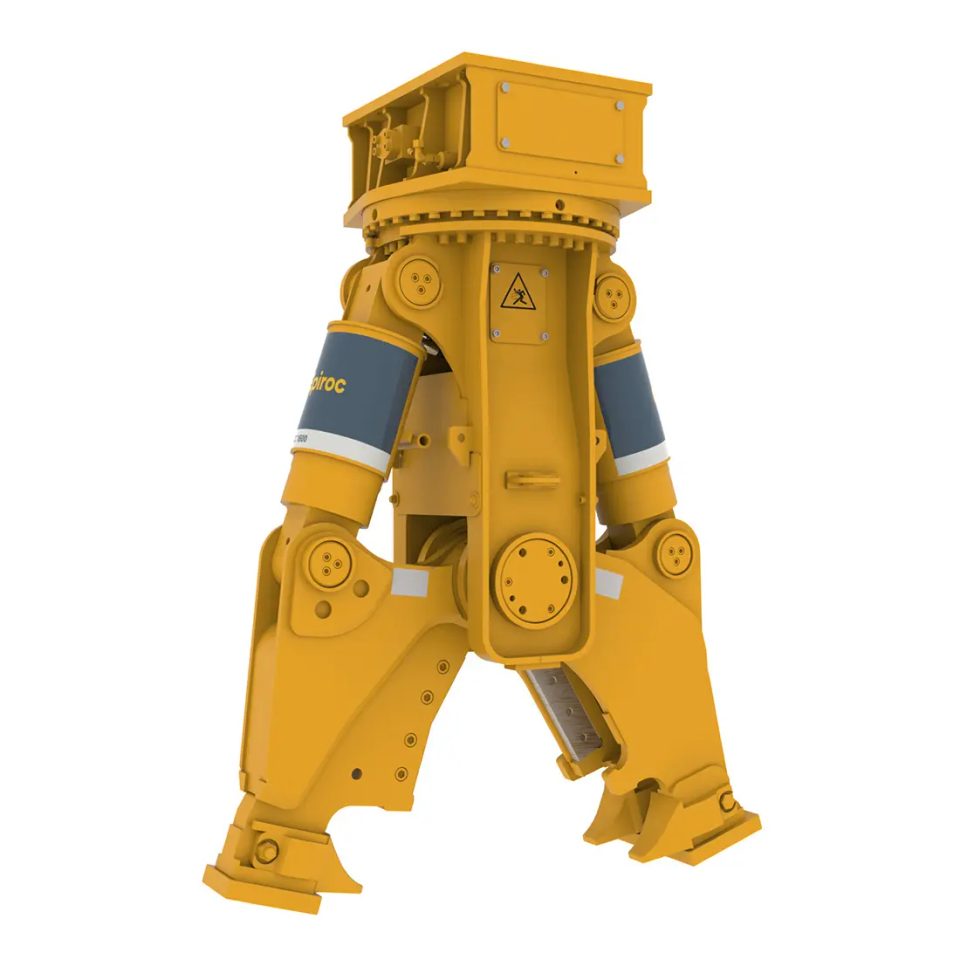

Epiroc CC1600 U

Epiroc CC1600 U combination shear fits carriers of 13 to 23 tons, weighs 1600 kg, and offers a 490 mm jaw depth with 57 tons refractive power. It provides rapid 1.3-second cycle times and a maximum jaw opening of 700 mm.

Price on Request

Request now

Specifications

Carrier Device Range: 13.0 – 23.0 tons
Operating Weight: 1600 kg
Oil Flow (Main): 150.0 – 250.0 l/min
Operating Pressure: 350 bar
Jaw Depth: 490 mm
Refractive Power, Cheek Tip: 57 tons
Closing Cycle: 1.3 sec.
Opening Cycle: 1.3 sec.
Max Jaw Opening: 700 mm
Rotation Oil Flow: 35.0 – 50.0 l/min
Max. Operating Pressure, Rotation: 170 bar
Device Type: In stock

Features & Benefits

High-Capacity Jaw Design: Deep jaw and wide opening for efficient processing of bulky demolition materials.
Rapid Processing Cycles: Fast opening and closing times maximize throughput and reduce project timelines.
Immediate Availability: In-stock status allows for quick deployment to meet project deadlines.
Precision Rotation Control: Hydraulic rotation provides enhanced maneuverability and cutting accuracy.
Robust & Reliable: Built for durability and continuous operation in demanding demolition environments.

Description

Enhance your demolition and material processing efficiency with the Epiroc CC1600 U (Up), a versatile hydraulic crusher cutter engineered for powerful and precise operation. Designed for carriers in the 13 to 23-ton range, this in-stock attachment features a deep 490 mm jaw and a wide 700 mm opening, making it ideal for handling reinforced concrete, structural steel, and industrial scrap. Its rapid 1.3-second cycle time boosts productivity on demanding job sites.
