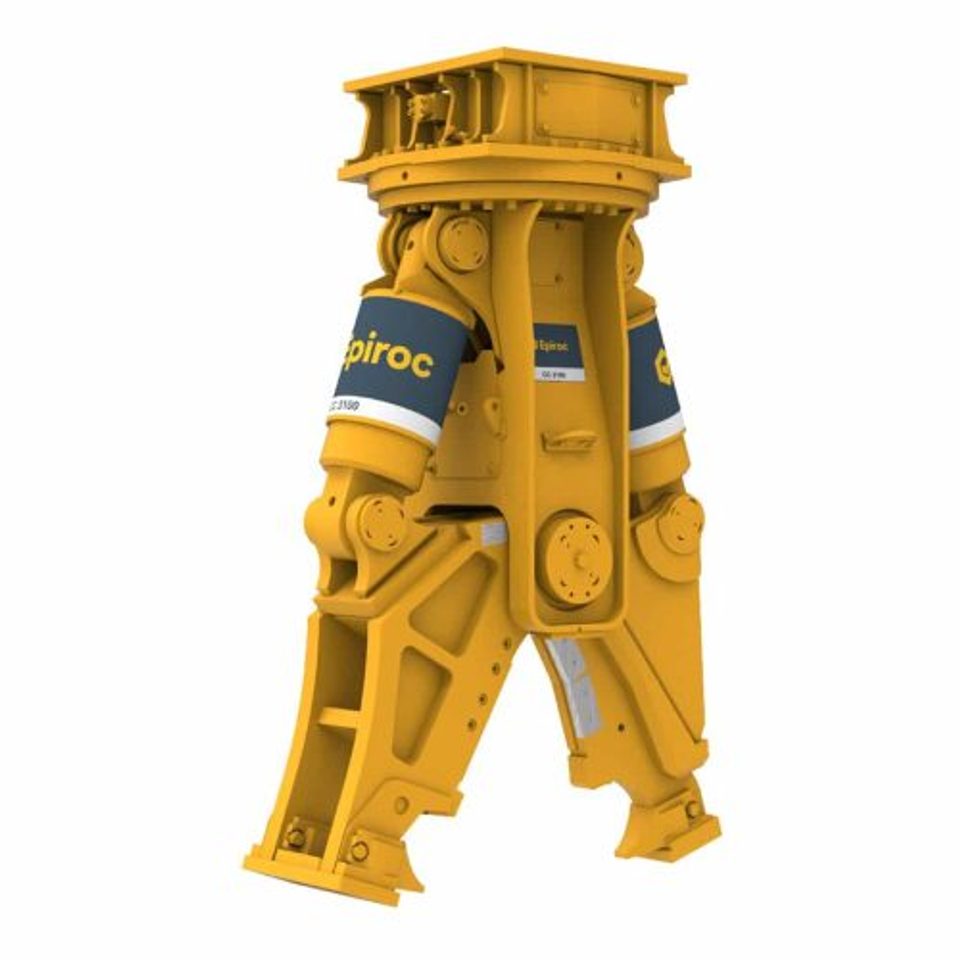

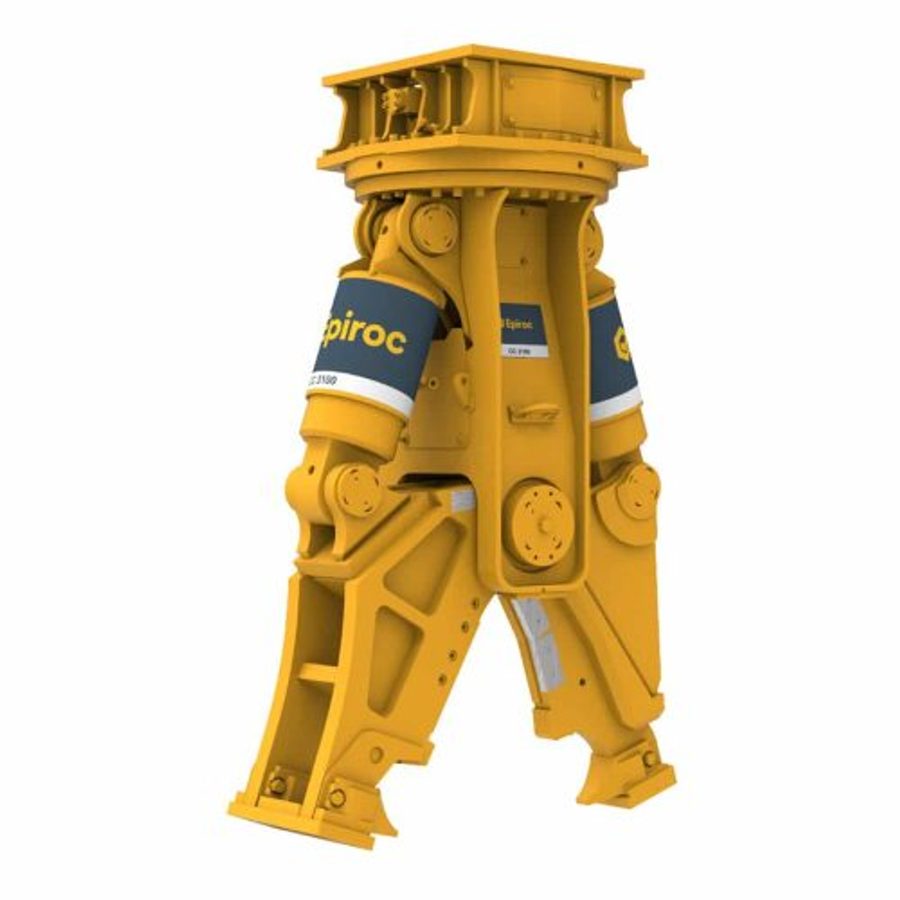

Epiroc CC3100 U

Epiroc CC3100 U combination shear supports carrier devices from 25 to 40 tons, weighs 3100 kg, and features a 700 mm jaw depth with 104 tons refractive power. It has cycle times near 3 seconds and a maximum jaw opening of 870 mm.

Price on Request

Request now

Specifications

Carrier Device Range: 25.0 – 40.0 tons
Operating Weight: 3100 kg
Oil Flow (Main): 150.0 – 250.0 l/min
Operating Pressure: 350 bar
Jaw Depth: 700 mm
Refractive Power, Cheek Tip: 104 tons
Closing Cycle: 2.9 sec.
Opening Cycle: 3.1 sec.
Max Jaw Opening: 870 mm
Rotation Oil Flow: 35.0 – 50.0 l/min
Max. Operating Pressure, Rotation: 170 bar
Device Type: New device

Features & Benefits

Extreme Cutting Power: High refractive force for processing heavily reinforced concrete and thick steel.
Large Jaw Capacity: Deep and wide jaw design handles bulky materials and large structural components.
Precision Rotation Control: Hydraulic rotation provides superior maneuverability for accurate cutting.
New Device Reliability: Latest engineering ensures optimal performance, durability, and minimal maintenance.
Optimized for Large Carriers: Engineered for 25-40 ton excavators, ensuring stability and efficient power transfer.

Description

Tackle large-scale demolition and industrial material processing with the Epiroc CC3100 U (Up), a powerful hydraulic crusher cutter engineered for extreme performance. Designed for carriers in the 25 to 40-ton range, this new device features a deep 700 mm jaw and a wide 870 mm opening, delivering 104 tons of refractive power to cut through heavily reinforced concrete and structural steel with high efficiency and precision.
