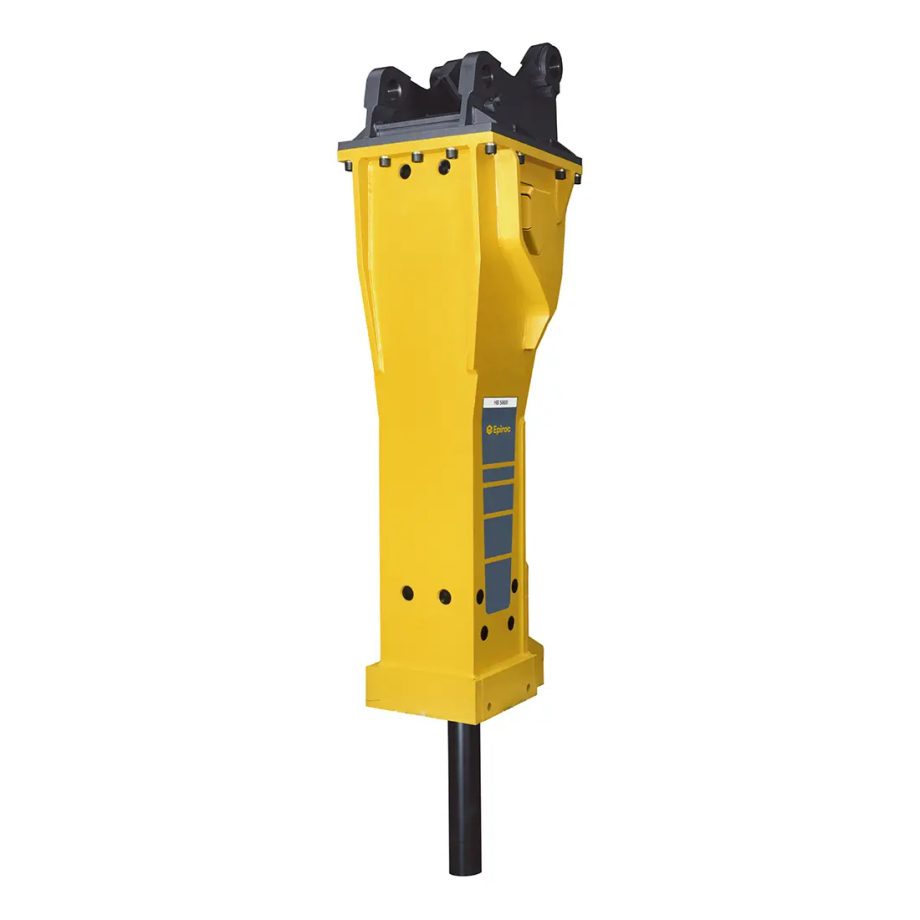

Epiroc HB5800
The Epiroc HB5800 hydraulic hammer supports carriers from 58 to 100 tons, weighing 5800 kg, with a maximum hydraulic input power of 117 kW and blow rate between 280 and 480 blows per minute.
Specifications
- Carrier Device Range 58.0 – 100.0 tons
- Operating Weight 5800 kg
- Recommended Oil Flow 310.0 – 390.0 l/min
- Operating Pressure 160 – 180 bar
- Blow Rate 280 – 480 blows/min
- Diameter of Insertion Tool 200 mm
- Max. Hydraulic Input Power 117 kW
- Guaranteed Sound Power Level 121 dB(A)
Description
Conquer the most monumental projects with the Epiroc HB5800, the apex of hydraulic breaker engineering designed for the most extreme and high-volume demolition, quarrying, and mining operations worldwide. As the pinnacle model in the series, the HB5800 delivers an uncompromising 117 kW of hydraulic power and a substantial 5.8-ton operating weight, engineered to deliver the maximum possible impact force. Uniquely matched for ultra-large carriers ranging from 58 to 100 tons, this breaker is built for peak efficiency in primary breaking of the hardest rock formations and demolition of massive reinforced concrete structures. The HB5800 epitomizes Epiroc’s commitment to durability and productivity, offering unmatched operational uptime and the lowest cost-per-ton, making it the ultimate strategic asset for contractors and mining operations where power, reliability, and sheer performance are non-negotiable.
