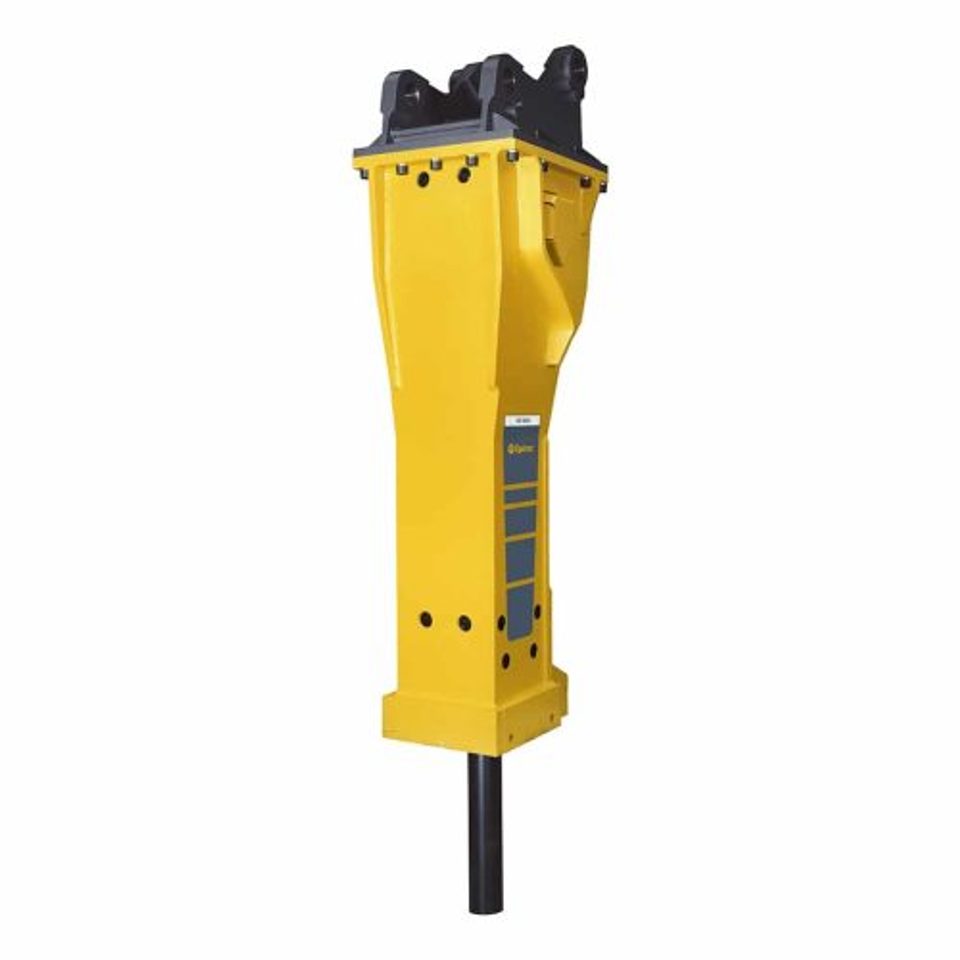

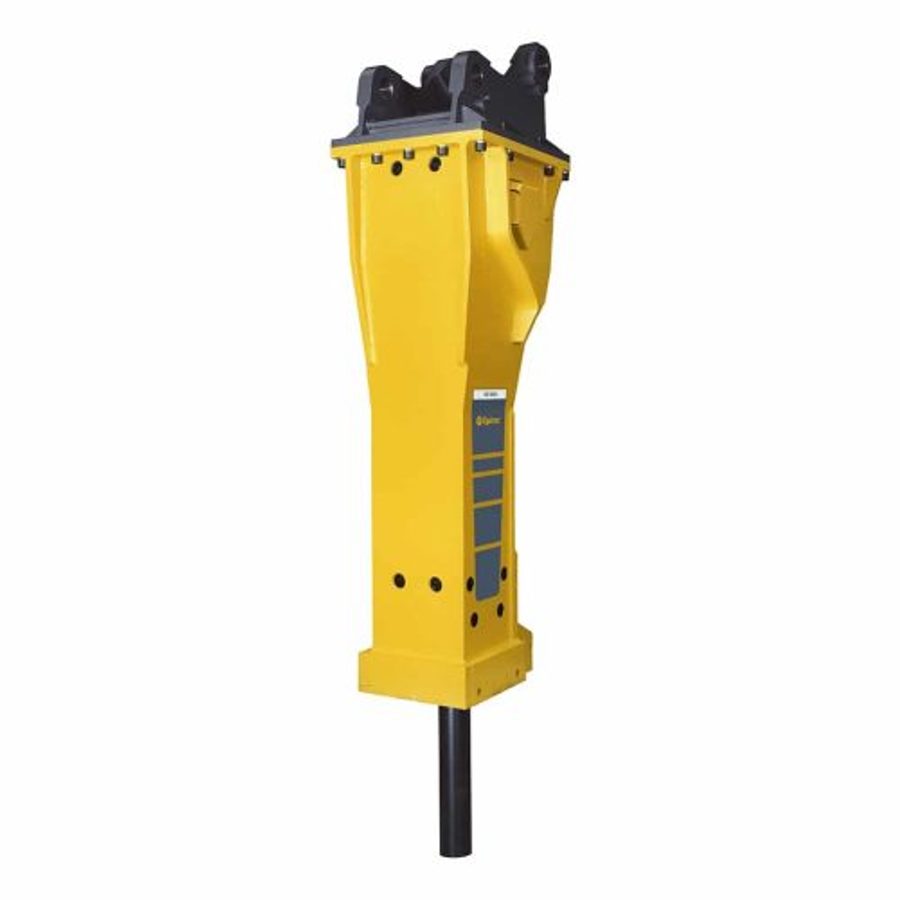

Epiroc HB5800

Epiroc HB5800 hydraulic hammer is suitable for excavators weighing 58 to 100 tons, with an operating weight of 5800 kg and hydraulic input power of 117 kW. It delivers 280 to 480 blows per minute with a 200 mm diameter tool.

Price on Request

Request now

Specifications

Carrier Device Range: 58.0 – 100.0 tons
Operating Weight: 5800 kg
Recommended Oil Flow: 310.0 – 390.0 l/min
Operating Pressure: 160 – 180 bar
Blow Rate: 280 – 480 blows/min
Diameter of Insertion Tool: 200 mm
Max. Hydraulic Input Power: 117 kW
Guaranteed Sound Power Level: 121 dB(A)

Description

Conquer the most monumental projects with the Epiroc HB5800, the apex of hydraulic breaker engineering designed for the most extreme and high-volume demolition, quarrying, and mining operations worldwide. As the pinnacle model in the series, the HB5800 delivers an uncompromising 117 kW of hydraulic power and a substantial 5.8-ton operating weight, engineered to deliver the maximum possible impact force. Uniquely matched for ultra-large carriers ranging from 58 to 100 tons, this breaker is built for peak efficiency in primary breaking of the hardest rock formations and demolition of massive reinforced concrete structures. The HB5800 epitomizes Epiroc’s commitment to durability and productivity, offering unmatched operational uptime and the lowest cost-per-ton, making it the ultimate strategic asset for contractors and mining operations where power, reliability, and sheer performance are non-negotiable.
